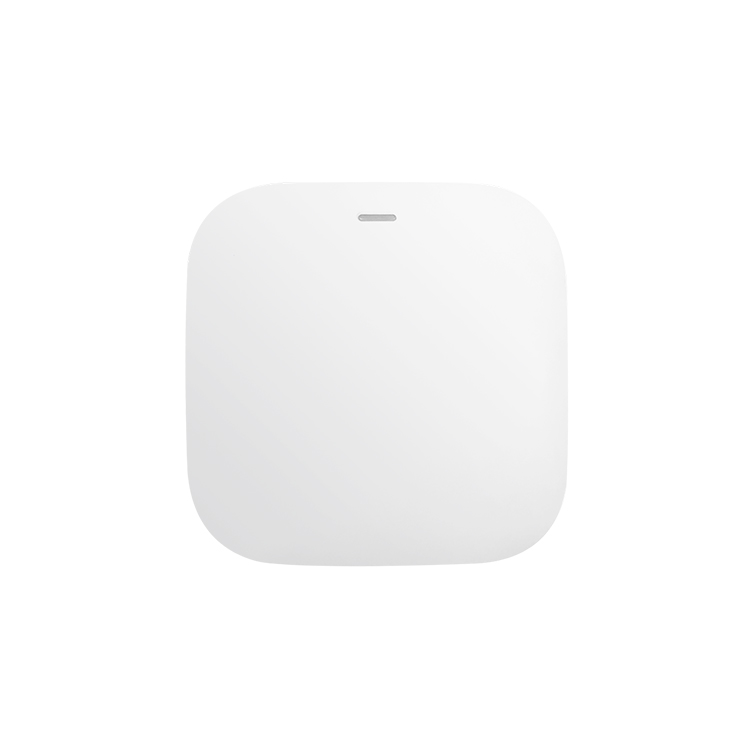

Wi-Fi 6 AX3000M

Wi-Fi 6 AX3000M

型号：Wi-Fi 6 AX3000M

【 详细介绍 】

2.4GHz & 5GHz & 2×2 802.Wi-Fi 6 Wireless Access Point Qualcomm IPQ5018 ARM A53 CPU, 1.0GHz CPU OpenWRT 2×2 2.4G 574Mbps + 2×2 5G 2400Mbps 802.11ax IEEE 802.3af/at 1x 2.5G Ethernet port 1x Gigabit Ethernet Port Support BLE SPEC Product type Wi-Fi 6 wireless access point Qualcomm Platform IPQ5018+QCN6102+QCA8081 CPU 1.0GHz@Dual Core ARM A53 DDR 512MB NOR Flash: 16MB NAND Flash：128MB Supported radio technologies: 802.11n, 802.11g, 802.11b, 802.11ac, 802.11a，802.11ax Radio Chains and Streams 2x2 2.4G + 2x2 5G Supported frequency bands: 2.412 ～ 2.472 GHz, 5.180 ～ 5.320 GHz，5.500 ～ 5.850 GHz PHY Rate at 2.4 GHz, maximum: 574Mbps, PHY Rate at 5 GHz, maximum : 2400Mbps Ethernet Ports: 1x 2.5G Ethernet port， 1x Gigabit Ethernet Port LED: 1x 4 LED PoE： 802.3at Power Consumption： ≤18W Operating Temperature: -10oC to 50oC Storage and transportation conditions: -40oC to 70oC Dimension: 210mm×210mm×59mm
