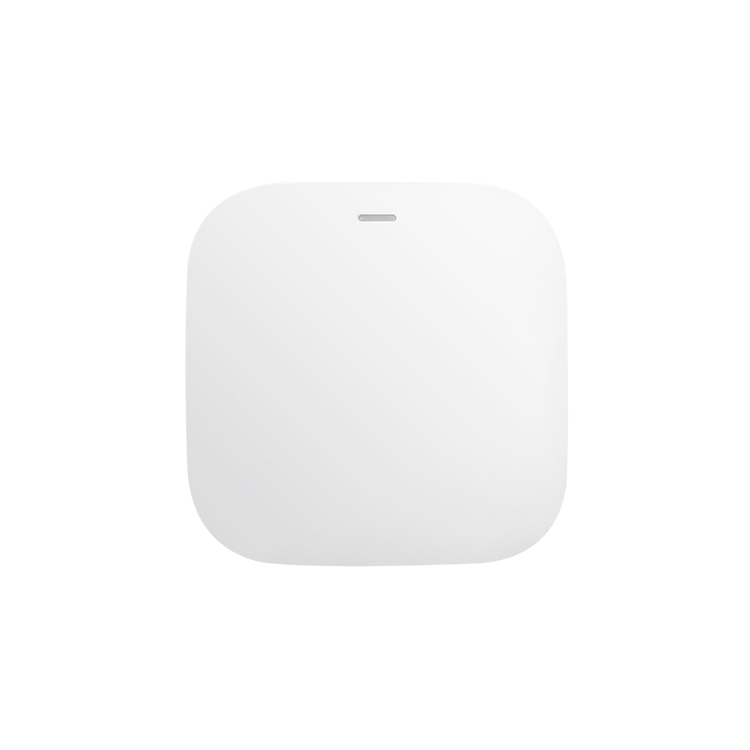

AX5400M Dual band Access Point
Processor Maple IPQ5018
Wireless ChipsetMaple 2.4G (xFEM) – +Pine 5G QCN6024 (xFEM) – 5GHz
Ethernet Phy 1x 2.5G with PoE PD + 1x GbE(embedded 1GbE phy)
SPI NOR Flash 16MB
SPI NAND Flash 128MB
DDR3L 512MB (single 16-bit)
BT/BLE v5.x, Maple
Maximum radio power 25dBm
Operating Tem: -10oC～50oC
ESD 6KV
Surge 2KV
EFT 2KV
Power Source PoE PD 802.3 at
DC Jack DC12V
Power consumption <25W
Dimensions 200mm x 200mm x 50mm
Weight 1.3kg
